Multiple Choice
Identify the
choice that best completes the statement or answers the question.
|
|
|
1.
|
Which of the below figures is a
net of the regular octahedron shown at the right?
(Figure may not be drawn to scale.) | | | |
|
|
|
2.
|
The figure shown is a net of a cube
with letters on each face. After the net is folded to create a cube, which of the below cubes
is the only one with the correct orientation of the letters on each face
shown?
(Figure may not be drawn to
scale.) | | | |
|
|
|
3.
|
Find the total surface
area of a rectangular prism that has the dimensions  .
(Figure may not be drawn to
scale.) | | | |
|
|
|
4.
|
Find the total surface
area of a right triangle prism given the measures in the diagram.
(Figure may not be drawn to scale.) | | | |
|
|
|
5.
|
Find the approximate surface
area of a cylinder that has a height of 6 cm and a radius of 8 cm.
(Figure may not be drawn to scale.) | | | |
|
|
|
6.
|
Find the exact surface
area of a sphere that has a radius of 3 cm.
(Figure may not be drawn to scale.) | | | |
|
|
|
7.
|

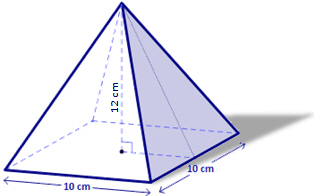

A square based pyramid is shown.
Determine the total surface area of the pyramid given each side of the square is 10 cm
and the height of the pyramid is 12 cm.
(Figure may not be
drawn to scale.) | | | |
|
|
|
8.
|
A cone is shown with the following
measures:
• A radius of 5 cm.
• A height of 12
cm.
Determine the surface area of the cone. |  (Figure may not be drawn to scale.) | | |
|
|
|
9.
|
A compound solid is shown. You
may assume any consecutive sides or faces are perpendicular.
Using the provided measures, find
the total surface area of the solid.
|  (Figure may
not be drawn to scale.) | | |
|
|
|
10.
|
A basketball has a 30 inch
circumference.
Approximately, what is the surface area of the
basketball?
|  (Figure may not be drawn to scale.) | | |
|
