Name:


Sample Quiz 02-02-Creating Sine Waves


Multiple Choice
Identify the choice that best completes the statement or answers the question.


 1.

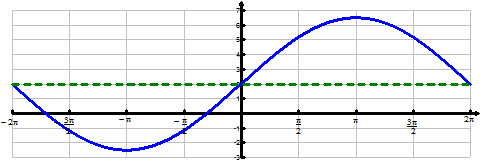

Determine the amplitude of the following sine graph.

a.
c.
b.
d.


 2.

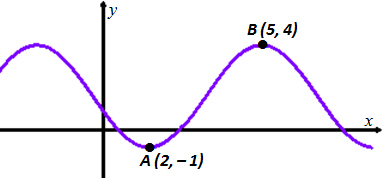

Given a local minimum occurs at point A (2, -1) and a local maximum occurs at point B (5,4), determine the amplitude of the following sine graph.

a.
2.5
c.
4
b.
3
d.
5


 3.

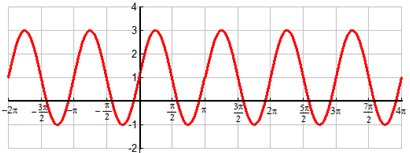

Determine the period of the following sine graph.

a.
c.
b.
d.
4.5


 4.

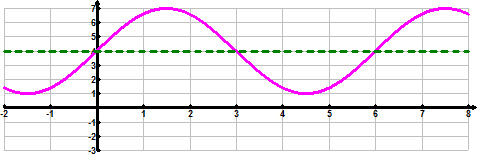

Determine the period of the following sine graph.

a.
c.
b.
d.


 5.

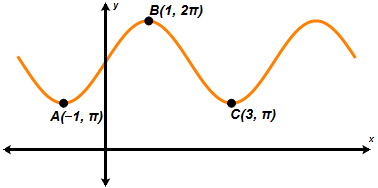

Consider the following sine graph. A local minimum occurs at point mc005-2.jpg and point mc005-3.jpg.  A local maximum occurs at point mc005-4.jpg. Determine the period of the following graph.

a.
3
c.
b.
4
d.


 6.

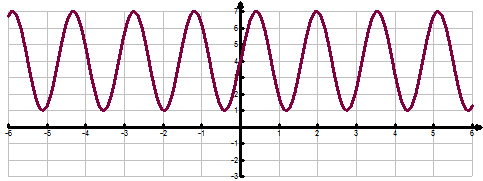

Determine the vertical shift of the following sine graph.

a.
1.5
c.
4
b.
3
d.
4.5


 7.

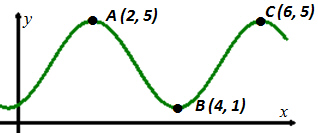

Consider the following sine graph. A local maximum occurs at point A (2, 5) and point C (6,5).  A local minimum occurs at point B (4,1). Determine the vertical shift of the following sine graph.

a.
1
c.
3
b.
2
d.
4


 8.

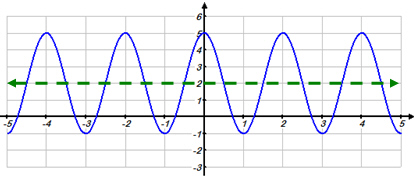

Determine which of the below is a possible  phase shift of the following sine graph.

a.
0
c.
1.5
b.
1
d.
2


 9.
Given a local minimum occurs at point A (2, -1) and a local maximum occurs at point B (5,4), determine which of the below is a possible  phase shift of the following sine graph.

a.
2.5
c.
4.5
b.
3.5
d.
5.5
